10/100Mbps Single Fiber Media Converter
SC Connector, External Power Supply DC5V1A
| Part Number | Optic Fiber | Wavelength | Power | Rx Sensitivity | Reach | Loss Allowed |
| BT-950SM-25A/B | Single mode | 1310/1550nm | -5~0db | -34db | 25km | 25db |
| BT-950SM-40A/B | Single mode | 1310/1550nm | -5~0db | -36db | 40km | 25db |
| BT-950SM-60A/B | Single mode | 1310/1550nm | -5~0db | -36db | 60km | 30db |
| BT-950SM-80A/B | Single mode | 1490/1550nm | -5~0db | -37db | 80km | 34db |
| BT-950SM-100A/B | Single mode | 1490/1550nm | -3~0db | -38db | 100km | 22db |
| BT-950SM-120A/B | Single mode | 1490/1550nm | 0~5db | -38db | 120km | 25db |
Fiber Connector: SC,FC/ST Optional
Power Supply: DC5V - external power supply, AC110/220V - internal power supply
Power plug types: Euro Standard, American Standard, UK Standard, etc
Optional Function: LFP(DIP Switch)
Thanks for your coming,please send us an enquiry!
BT-950 Series are non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC, FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum extension is up to 120km over fiber.
Features
* In conformity to 10/100Base-TX, IEEE802.3u, 100 base-TX/FX, IEEE802.3ab 1000base-TX, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree, IEEE802.3, 100Base-FX, IEEE 802.3ah 100 Base.
* Hot Pluggable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Concentrated into BT-EF16-D220(16slot for media converter cards) or BT-EF14-D220(14slot for media converter standalone type) 2U rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.
* Auto-negotiation và speed autosensing.
* Complies with ITU-T G985 Class S standard.
* Compatibles with Layer 2 Switch.
Specification
|
Optical Interface |
Connector |
SC/UPC(100 Base FX) |
|
Data Rate |
100Mbps,1000Mbps Download and Upload:100Mbps with error rate of zero |
|
|
Duplex Mode |
Full duplex |
|
|
Fiber |
MM 50/125um,62.5/125um SM 9/125um |
|
|
Distance |
100Mbps: MM2km,SM25/40/60/80/100/120km 1000Mbps: MM550m/2km,SM20/40/60/80/100km |
|
|
Wavelength |
MM850nm,1310nm SM 1310nm,1550nm |
|
|
WDMTx1310/Rx1550nm(Aside),Tx1550/Rx1310nm(Bside) |
||
|
UTP Interface |
Connector |
1 Port Ethernet 10/100 Base-TX (RJ45) |
|
Data Rate |
10/100Mbps,10/100/1000Mbps |
|
|
Duplex Mode |
Half/full duplex |
|
|
Cable |
Cat5,Cat6 |
|
|
Power Input |
Adapter Type |
DC5V |
|
Power Built-inType |
AC100~240V50/60Hz |
|
|
Power Consumption
|
<3W |
|
|
Weight |
Adapter Type |
0.39kg |
|
Power Built-in Type |
0.67kg |
|
|
Dimensions |
Adapte Type |
94*70.5*26.5mm |
|
Power Built-in Type |
140.5*111*30mm |
|
|
Temperature |
0~55℃ Operating;-40~70℃ Storage |
|
|
Humidity |
0~90%(no condensing) |
|
|
MTBF |
≥10.0000h |
|
|
Certification |
CE,FCC,RoHS |
|
Application
* Extend your Ethernet connection up to 0~120km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic
networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet
network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit
Ethernet Network.
System Design

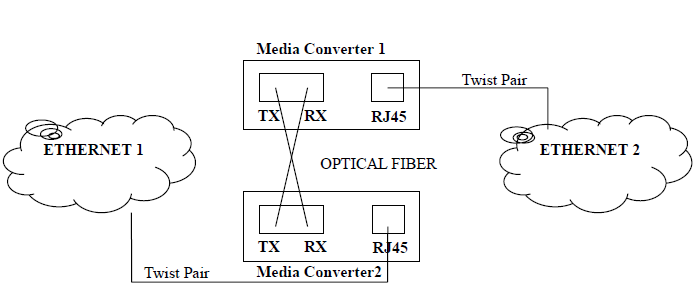

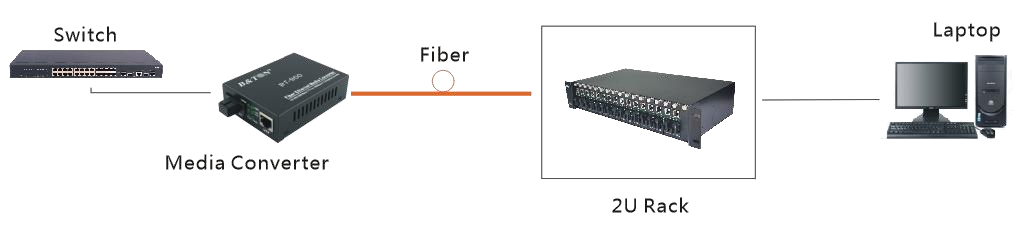

1. For Networking

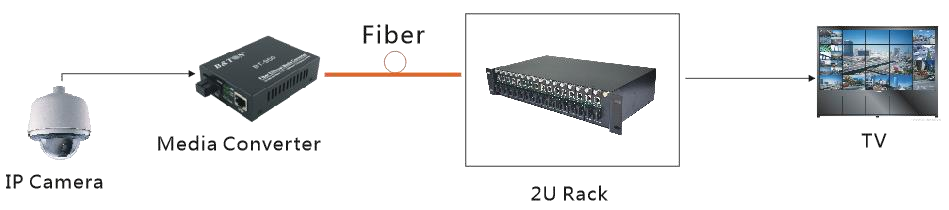

2.For CCTV Surveillance Security

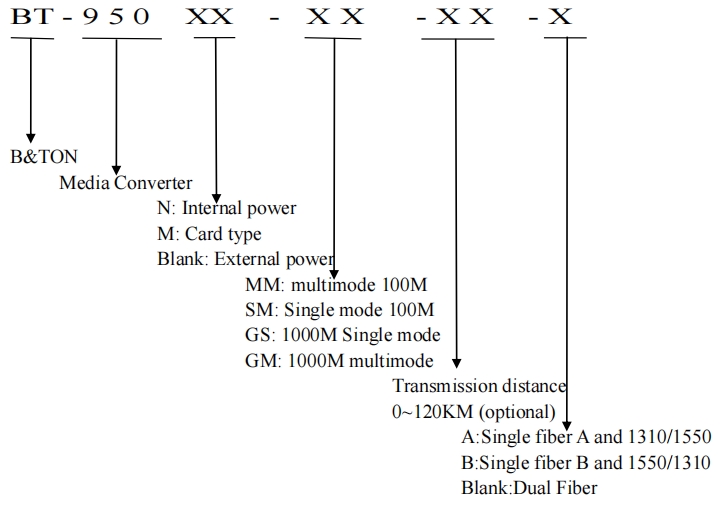

Naming Scheme of Ethernet Media Converter

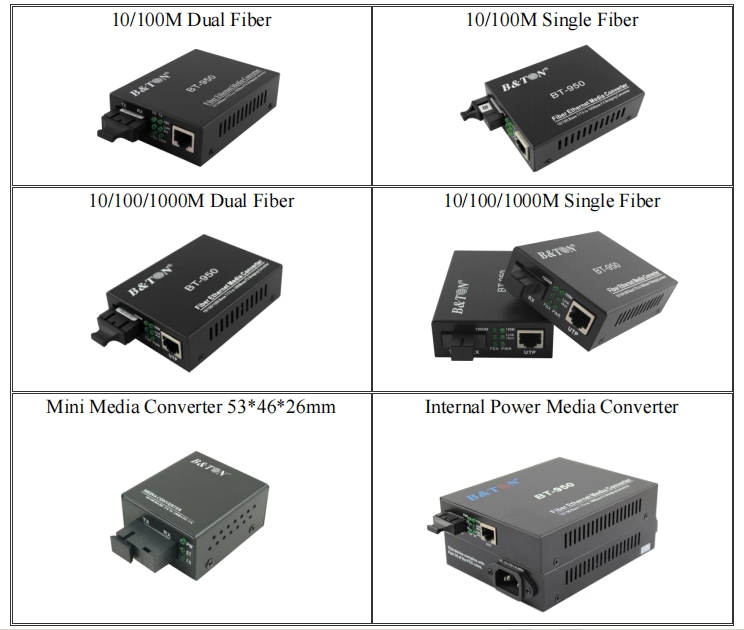

Product Pictures
Order Information
|
Part Number |
Data Rate |
Optic fiber |
Wavelength (nm) |
Power (dBm) |
Rx sensitivity (dBm) |
Reach |
Loss
allowed |
|---|---|---|---|---|---|---|---|
|
BT-950MM-2 |
10/100Mbps |
MM |
1310 |
-15~-7 |
-30 |
2 |
10 |
|
BT-950SM-25 |
10/100Mbps |
SM |
1310 |
-5~0 |
-34 |
25 |
19 |
|
BT-950SM-40 |
10/100Mbps |
SM |
1310 |
-5~0 |
-36 |
40 |
27 |
|
BT-950SM-60 |
10/100Mbps |
SM |
1310 |
-5~0 |
-36 |
60 |
31 |
|
BT-950SM-80 |
10/100Mbps |
SM |
1550 |
-5~0 |
-37 |
80 |
32 |
|
BT-950SM-100 |
10/100Mbps |
SM |
1550 |
-3~0 |
-38 |
100 |
35 |
|
BT-950SM-120 |
10/100Mbps |
SM |
1550 |
0~5 |
-38 |
120 |
38 |
|
BT-950GM |
10/100/1000Mbps |
MM |
850 |
-9.5~4 |
-17 |
0.55 |
8 |
|
BT-950GS-2 |
10/100/1000Mbps |
MM |
1310 |
-9~-3 |
-21 |
10 |
12 |
|
BT-950GS-20 |
10/100/1000Mbps |
SM |
1310 |
-5~0 |
-21 |
20 |
15 |
|
BT-950GS-40 |
10/100/1000Mbps |
SM |
1310 |
-5~0 |
-24 |
30 |
20 |
|
BT-950GS-60 |
10/100/1000Mbps |
SM |
1550 |
-5~0 |
-25 |
50 |
20 |
|
BT-950GS-80 |
10/100/1000Mbps |
SM |
1550 |
-2~3 |
-25 |
80 |
25 |
|
BT-950SM-2A/B |
10/100Mbps |
MM |
1310/1550 |
-14~-8 |
-30 |
2 |
17 |
|
BT-950SM-25A/B |
10/100Mbps |
SM |
1310/1550 |
-5~0 |
-33 |
25 |
25 |
|
BT-950SM-40A/B |
10/100Mbps |
SM |
1310/1550 |
-5~0 |
-33 |
40 |
25 |
|
BT-950SM-60A/B |
10/100Mbps |
SM |
1310/1550 |
-5~0 |
-37 |
60 |
30 |
|
BT-950SM-80A/B |
10/100Mbps |
SM |
1490/1550 |
-0~0 |
-39 |
80 |
34 |
|
BT-950SM-100A/B |
10/100Mbps |
SM |
1490/1550 |
-O~0 |
-39 |
100 |
34 |
|
BT-950SM-120A/B |
10/100Mbps |
SM |
1490/1550 |
-O~0 |
-39 |
120 |
34 |
|
BT-950GS-10A/B |
10/100/1000Mbps |
SM |
1310/1550 |
-6~-1 |
-22 |
10 |
22 |
|
BT-950GS-20A/B |
10/100/1000Mbps |
SM |
1310/1550 |
-5~0 |
-22 |
20 |
22 |
|
BT-950GS-40A/B |
10/100/1000Mbps |
SM |
1490/1550 |
-5~0 |
-22 |
40 |
22 |
|
BT-950GS-60A/B |
10/100/1000Mbps |
SM |
1490/1550 |
-5~0 |
-22 |
60 |
22 |
|
BT-950GS-80A/B |
10/100/1000Mbps |
SM |
1490/1550 |
0~2 |
-25 |
80 |
25 |
