| Part Number | Optic Fiber | Wavelength | Power | Rx Sensitivity | Reach | Loss Allowed |
| BT-950SM-25A/B | Single mode | 1310/1550nm | -8~-3db | -33db | 25km | 25db |
| BT-950SM-40A/B | Single mode | 1310/1550nm | -8~-3db | -33db | 40km | 25db |
| BT-950SM-60A/B | Single mode | 1310/1550nm | -5~0db | -37db | 60km | 30db |
| BT-950SM-80A/B | Single mode | 1490/1550nm | 0db | -39db | 80km | 34db |
| BT-950SM-100A/B | Single mode | 1490/1550nm | -6~-1db | -22db | 100km | 22db |
| BT-950SM-120A/B | Single mode | 1490/1550nm | 0~2db | -25db | 120km | 25db |
Fiber Connector: SC,FC/ST Optional
Power Supply: DC5V - external power supply, AC110/220V - internal power supply
Power plug types: Euro Standard, American Standard, UK Standard, etc
Optional Function: LFP(DIP Switch)
Thanks for your coming,please send us an enquiry!

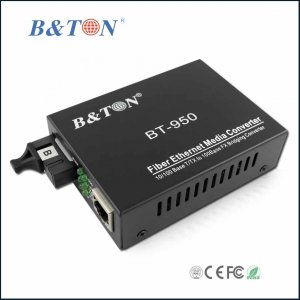

BT-950 Series is a kind of intelligent, adaptive and fast Ethernet converter devices.
It can implement data transmission between twisted pair electrical signals and optical signals which are the two types of network connection media.This kind of media converter can extend the transmission distance to 0.55 kilometers(multi-mode) or 100 kilometers(single mode). Using media converter is an economical solution to achieve long distance transmission base on current status.
Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T
* MDI/MDI-X Auto Negotiation
* Supports 2U 19” System Chassis, holds up to 14pcs standalone type media converter or 16pcs card based media converter
* Hot Pluggable&Wall-Mountable
* Stable performance more than 50thousand hours with fault-free
* Unique IC solution applied
* Supports 10/100Mbps full/half duplex,easy upgrades
* Stable performance more than 50 thousands hours with fault-free
* In conformity with safety code of FCC, CE and RoHS.
Specification
|
Optical Interface |
Connector |
SC(default)/FC/ST |
|
Optical Module |
1*9 type |
|
|
Data Rate |
100Mbps, 1000Mbps |
|
|
Duplex Mode |
Full duplex |
|
|
Fiber |
MM 50/125um,62.5/125um; SM 9/125um |
|
|
Distance |
100Mbps: MM 2km,SM 25/40/60/80/100/120km |
|
|
Wavelength |
MM 850nm,1310nm |
|
|
UTP Interface |
Connector |
RJ45 |
|
Data Rate |
10/100Mbps, 10/100/1000Mbps |
|
|
Duplex Mode |
Half/full duplex |
|
|
Cable |
Cat5,Cat6, Cat7 |
|
|
Power Input |
Adapter Type |
DC5V(default), 12V/24V/48V |
|
Power Built-in Type |
AC100~240V |
|
|
Power Consumption |
＜3W |
|
|
Weight |
Adapter Type |
0.39kg |
|
Power Built-in Type |
0.67kg |
|
|
Dimensions |
Adapter Type |
94*70.5*26.5mm(default); 53*46*26mm for mini type |
|
Power Built-in Type |
140.5*111*30mm |
|
|
Temperature |
0~60℃ Operating; -40~70℃ Storage |
|
|
Humidity |
5~95%(no condensing) |
|
|
MTBF |
≥10.0000h |
|
|
Certification |
CE,FCC,RoHS |
|
Application
* Extend your Ethernet connection up to 0~100km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
|
Protocol supported |
