Contact Closure to Fiber


Terminal Block Conectors

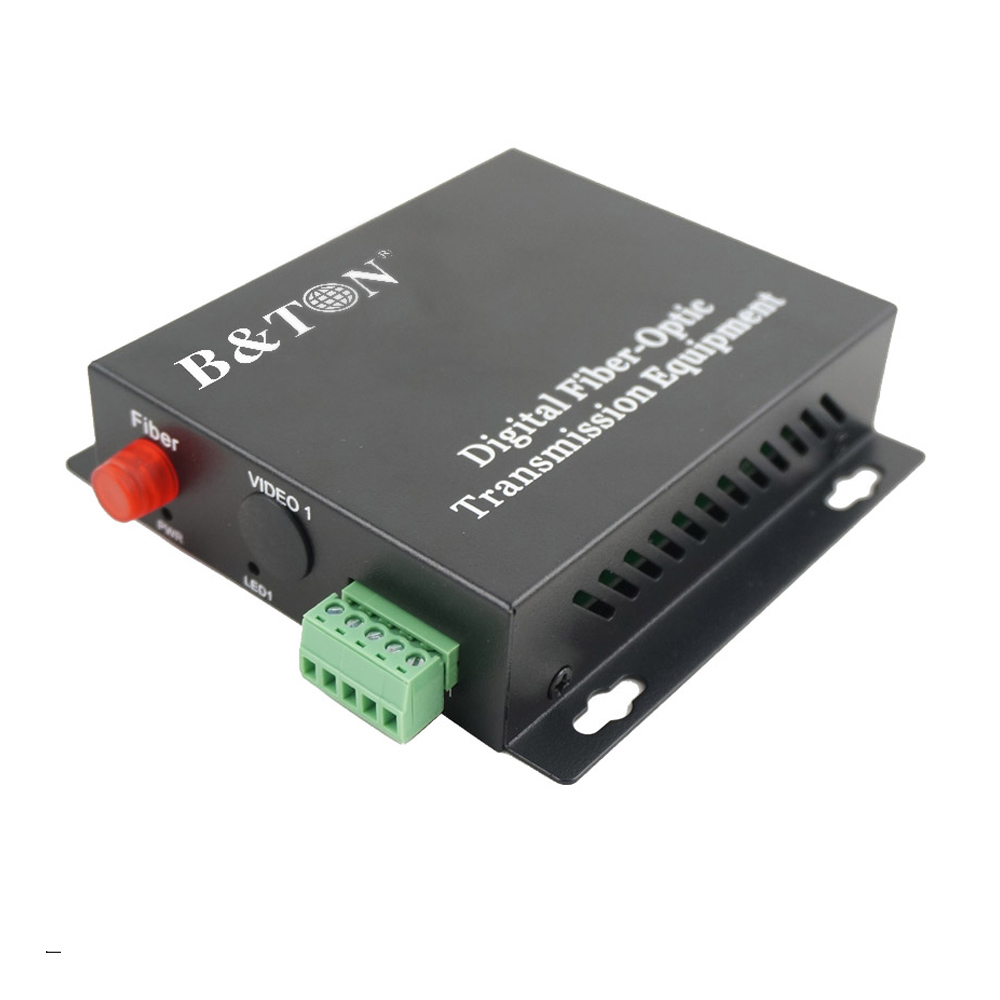

Contact Closure over Fiber Transmitter and Receiver

Part Number Description
BT-1CF-T/R 1ch Unidirectional Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-1C↑↓F-T/R 1ch BIDI Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-2CF-T/R 2ch Unidirectional Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-2C↑↓F-T/R 2ch BIDI Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-4CF-T/R 4ch Unidirectional Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-4C↑↓F-T/R 4ch BIDI Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-8CF-T/R 8ch Unidirectional Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-8C↑↓F-T/R 8ch BIDI Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-16CF-T/R 16ch Unidirectional Conatct Closure, Single Fiber, Single mode, FC, 20km
BT-16C↑↓F-T/R 16ch BIDI Conatct Closure, Single Fiber, Single mode, FC, 20km





Contact Closure over Fiber Transmitter and Receiver

The optical converters can simultaneously transmit video/data/audio/Ethernet/telephone/dry contact over one single mode or multimode optical fiber.
Plug and Play design ensures the ease of installation and operation. Electronic and optical
adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation,which is suitable for different
working environment.

Features

* Physical connector: Industrial standard connector port
* Alarm output: Support any type of active or passive alarm output
* Data Interface: Support TTL, RS232/485/422 or relay output
* Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required
* Special ASIC design
* Hot-swap function
* Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis

Application
* Intelligent Transportation System
* Connection of Sub-network for Surveillance Center
* Public Security Surveillance
* High Way & Toll Station Surveillance
* Industrial Closed Circuit Television Surveillance
