1ch HD-TVI/CVI/AHD 1080P

1ch HD-TVI/CVI/AHD/Analog 4in1 1080P

Order ModelSpecifications

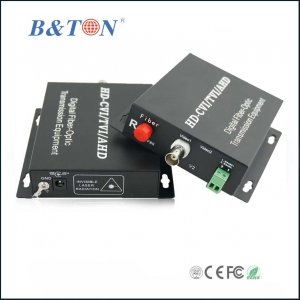

1Channel HD-TVI/CVI/AHD/Analog 4in1 Video to Fiber Transmitter and Receiver

Model Description
BT-HD1VF-T/R 1ch HD-TVI/CVI/AHD Video,
1080P, single fiber, single mode, FC, 20km
BT-HD1V1DF-T/R 1ch HD-TVI/CVI/AHD Video, 1ch Reverse RS485 Data,
1080P, single fiber, single mode, FC, 20km



HD-TVI/CVI/AHD Video Converter 1080P
HD-TVI/CVI/AHD to Fiber Converter can simultaneously transmit 1 channel HD-TVI/CVI/AHD over one multi mode or single mode optical fiber.
Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment.Compatible with 1080P resolution.

Features
* Self-adaptive output HD-TVI/CVI/AHD signal
* Loss-less real time non-compression transmission
* LED indicators
* Fully enclosed dust-proof design
* For Bullet cameras, no control function
* 1080P resolution

Specifications
Optical

Wavelength

1310nm/1550nm

Output Power

 -8~3dBm

Optic fiber

50/125u multi mode,62.5/125u multi mode,9/125u single mode

Rx sensitivity

-25dBm

Optical connector

FC/ST/SC (optional)

Distance

0~550M (MM)  /  0~20KM  (SM)


Video

Number of Channels

1

Input/output impedance

BNC 75Ω (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

45MHz

Sampling Bandwidth

10bit

Sampling Frequency

108MHz

Rise and Fall time

<0.8ns

Optical Signal Intrinsic Jitter

<0.2 UI

Differential Gain

 < ±1.5%

Differential Phase

 < ±1°

Connector

 BNC


Other

Power

DC5V 2A

Power Consumption

≤6W

Temperature

-40ºC ~75ºC

Humidity

10%~90% RH

Installation

Wall mount

MTBF

≥ 100000Hours
