1Channel HD-SDI Video

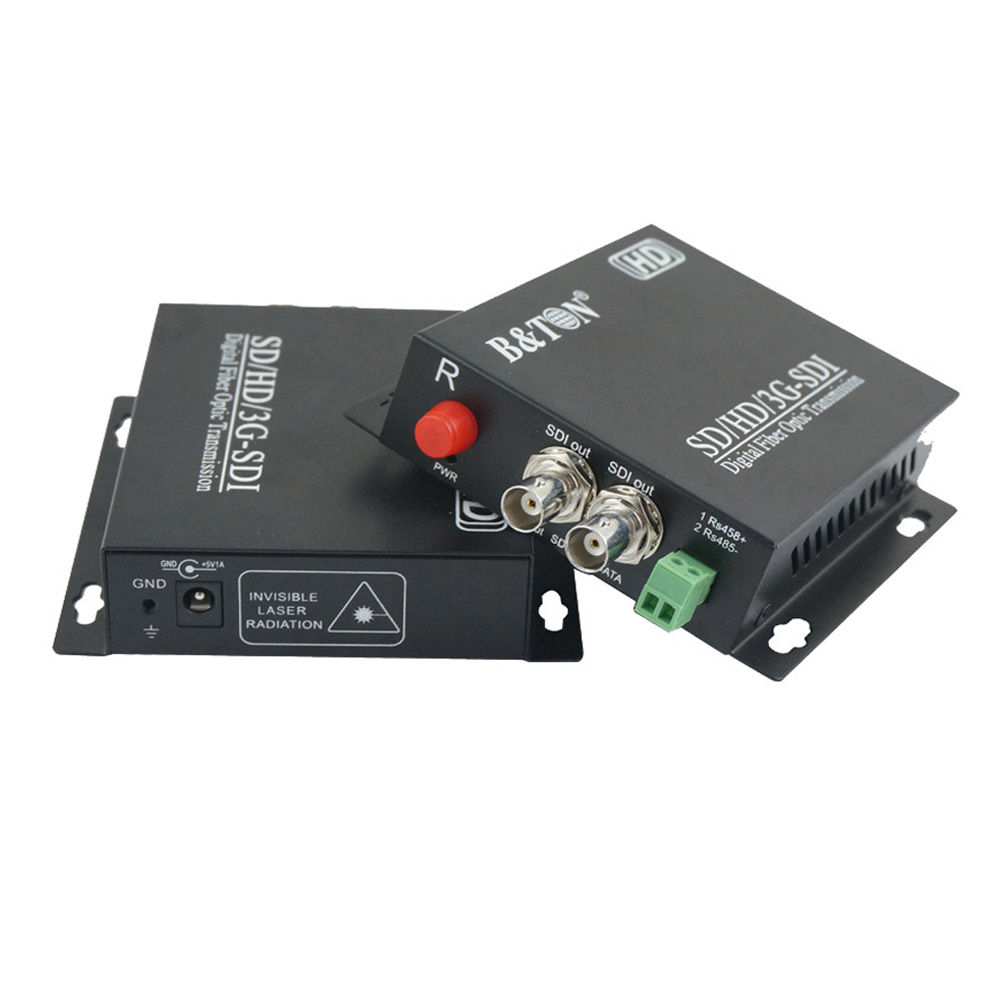

HD-SDI Unidirectional Fiber Optic Transmitter/Receiver
| Part Number | Description |
| BT-1HDSDIF-T | 1CH HD-SDI with embedded audio input, single mode/multimode, single fiber, FC/PC, 0~120km |
| BT-1HD-SDIF-R | 1CH HD-SDI with embedded audio output, single mode/multimode, single fiber, FC/PC, 0~120km |
HD-SDI Unidirectional Fiber Optic Transmitter/Receiver
Features
«1ch unidirectional HD-SDI video with embedded audio over one fiber
«Range from 19.4Mb/s to 1.485Gb/s
«SMPTE 292M (1.485Gb/s) clock recovery
«Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
«Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
«Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
«150m automatic cable equalization, all the 1.485 Gb/s rate below（Belden 1694A）
«Optional network management system
«LED status indicators monitor the critical parameters
«Optional network system
«Support hot swap
«Support stand-alone, 1U rack mount and 4U rack mount
Applications
«Remote OB Van/Truck Video Feeds
«Broadcast Studio Camera Feeds
«Long-haul Signal Transport
«TV station/video conference
«Lecture Hall Projector Connectivity
«Medical/Surgical Room Broadcast
«Building to Building video conference calling
«Small corporate campus video links
